Product Description

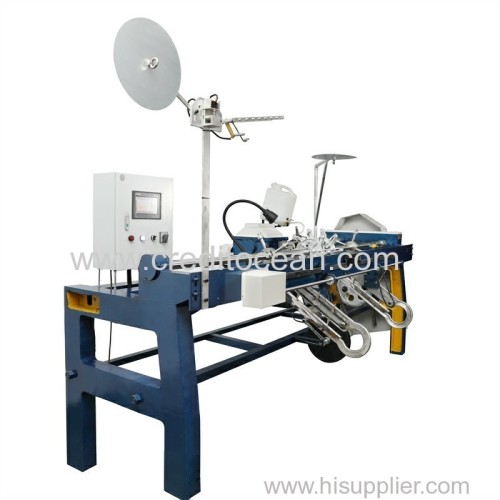

The CORL shoelace tipping machine is used to apply aglets to shoelaces and gift bag lace in a neat and beautiful way. This is an economical and practical machine suitable for customers with small initial investment.
The tipping of shoelace and gift bag lace can be realized in one machine simultaneously only by changing the feeding device. If the acetate film with pattern is to be tipped, an infrared photoelectric protector can be selected to precisely position the acetate film. Meanwhile, if the photocell eye is equipped, the tipping of the shoelace and gift bag lace can be finished without changing the feeding device. The machine is easy to operate and has the functions of PLC counter and anti-punch, thus ensuring safe production.
According to the automation degree and the length of suitable laces, we offer you a variety of machine types to choose from.
| Model | CO-9 | CO100 | CO150 | CO200 | CO250 |
| Type | Semi-automatic | Full-automatic | |||
| Min. Length of lace | 9cm | 40cm | 40cm | 40cm | 40cm |
| Max. Length of lace | Unlimited | 100 cm | 150 cm | 200 cm | 250 cm |
| Output | 40 pcs/min | 60 pcs/min | 60 pcs/min | 60 pcs/min | 50 pcs/min |
| Motor | 1.5 KW | 1.5 KW | 1.5 KW | 1.5 KW | 1.5 KW |
| Electric heating | 40° – 45° | 40° – 45° | 40° – 45° | 40° – 45° | 40° – 45° |
| Machine size | 900×650×1070 mm | 1910×1330×1620 mm | 2500×1400×1660 mm | 3120×1400×1660 mm | 3500×1400×1660 mm |
| Machine weight | 160 KG | 500 KG | 600 KG | 750 KG | 850 KG |
| Optional attachment | Acetate film: 25mm, 30mm, 32mm, 40mm, 50mm etc. 13mm 14mm 15mm 16mm tooth Knife moulds: ¢1.5, ¢1.9, ¢2.1, ¢2.3, ¢2.5, ¢2.8, ¢3.0, ¢3.2, ¢3.5, ¢3.7, ¢4.0, ¢4.2, 4.5, ¢4.8, ¢5.0. Pump | ||||
