CREDIT OCEAN high speed soft cone yarn winding machine

0.00৳

SKU: 5702ed54b5d3 Category: Tag:
Model: CO-S Min. Order: 1 Set/Sets Trade Term: FOB,EXW Payment Terms: L/C, T/T Place of Origin: Zhejiang, China (Mainland) Means of Transport: Ocean, Air, Land Production Capacity: 1000000000

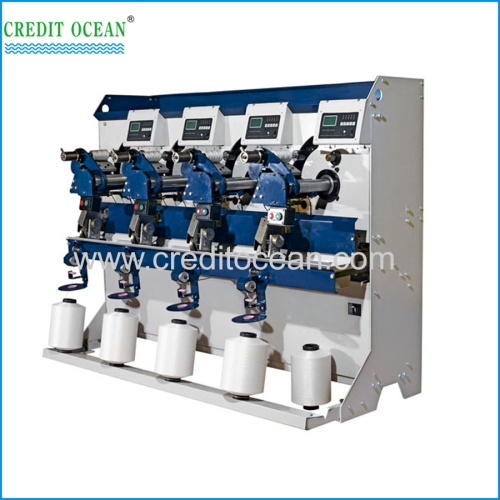

CREDIT OCEAN high speed soft cone yarn winding machine

High speed soft cone yarn winding machine applied to cotton, linen, silk and chemical fiber tube-tube yarn winding of a class into a cont to form cylindrical soft cheese, meet the requirements of an ideal model for high temperature and high pressure dyeing.



Product Description



Groove drum 0/D 82mm, spindle distance 2.5, dymmertry0°
Tube type Flat tube to be cone
Spindle 12 spindles / group
Assembie max.9 group for 1 set, total 108 spindles (normal 7 group 84 spindles)
Max. speed 2800R/min
Diameter 280mm
Parameter design

individual or touch screen interface control

(Flxed – length, slow – start, adjustable speed, broken yarn auto stop)

Voltage 3phase5 wires, 380v 50HZ
Power 90W/spindle +5W(wax)+cleaning
Size 2230*110*1600mm
Weight 350kgs

.



1.Grooved drum of superplastic alloy material, high strength, light weight , groove design guide has an excllent performance broad aoolicability, the surface adoptthe new technology of polishing. Ra< 0.8am roughness, hardness HV>900, Computer dynamic balance correction to meet high speed and low noise.

2.Axial traverse soft edge device and the fold pendulum frequency design, can make the pine bobbin yarn dyed sex are more.

3.Individual spindle control, slow start, the line speed is adjustable, broken yarn stip and alarm functions.

4. Advanced touch screen interface.

Why choose us

Credit Ocean is started in 2004 year and the centre of expertise and capacity. And we provide of needle loom, crochet machines, warping machines, electronic jacquard needle loom machines, shoelace and bag lace tipping machines, high speed braiding machine and high speed cord knitting machine etc.

Credit ocean supply of a wide range of machinery for many applications

Credit Ocean provide high quality machines

Credit ocean service quality

Credit Ocean have well experienced team

   Credit ocean persist in the principle of “credit-keep promising,quality-keep upgrading,service-keep improving”.



Services

1. We offer best after-sales service for customers.

2. Engineers available to solve any problem in need.

3. We help order spare parts quickly and correctly.

Don’t hesitate to send us inquiry; we’ll give you feedback within 24 hours!



Attribute

Product Attribute Packing: Normal Packing Delivery Date: 15-20days
